S8 = Super8 and the crisp Single-8


		I will update this site continously (last modification: aug 16, 2006)

	Rollei and Super 8? yes there is a secret!


	Rollei is known for still cameras -but only few people knows their Super 8 camera adventure.


	The Rollei freaks had some models with good quality but only for standard “home” usage with no extraordinary properties..except the older SL 83 and SL84. The technic of the two models is based on the Bosch BAUER Royal 8 and 10 (with NEOVARON lens from Schneider!).

SL84

SL83 - same look, lens 1.8 / 7.5 - 60, without: flash and fade functions

After the SL models Rollei did n´t build Super8 cameras anymore.

All other models are constructed and build for Rollei by COSINA . These special models are well designed with good COSINA quality:

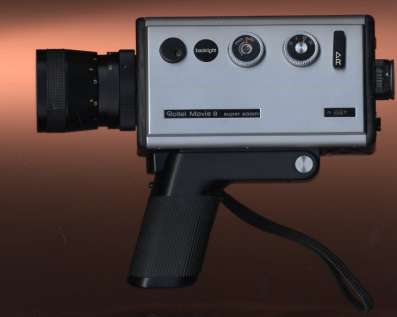

Movie 8 super zoom - also one top favorite! TTL auto/manu, with manual correction, ND/grey filter

lens 1.7 / 7.5 - 60, fade, lap dissolve, fps: 1 /18/ 24/ 48 - sockets:sync sound, cable release, flash,

Movie sound XL 8 macro - a good straight sound camera

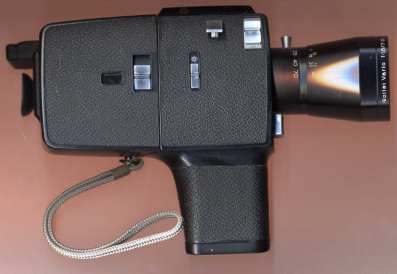

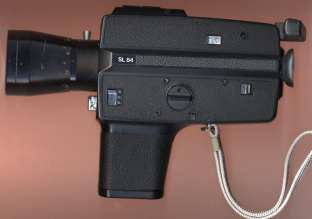

	SL84 - for me this is one of the older top favorite! A solid camera, very seldom sold today and with superb features: Rollei lens 1.8 / 7 - 70, film rewind, variable shutter / sektor, fades, lap dissolve, fps: 18/ 24/ 54, single frame - cable release, sockets: flash, TTL auto/manu, ASA 25 to 160

Macro Lens	1,4 / 7 - 56 mm	viewfinder		mirror reflecting system with microgrid
zoom	2 - speed manual	open sector		200 degree
distance	Macro: up from 1 cm Normal: up from 1 m	external connectors		9 V battery/accu micro- and earphone remote control on microphone switch
lightmeter	CdS with correction	Warren filter (daylight filter)	yes
aperture	F 1,4 - F 22 auto / manual	battery	6 x 1,5V AA
fading	up and down	soundsytem	yes
fps	1, 18, 24 slow motion: 48	weight		1.7 kg
